Advantech PPC-6151C

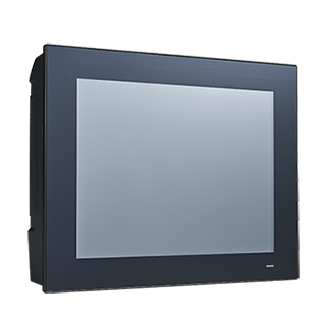

The PPC-6151C, a panel PC chassis with 15" TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6151C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.

Specifications

lPPC-6151C-RTAE	PPC-6151C-RMAE
Supported Motherboard
PPC-MB-8260AE / PPC-MB-610	AIMB-275 AIMB-226
Chassis Storage
1 x 2.5" SATA HDD bay /2 x 2.5" SATA HDD bay (optional)	2 x 2.5" SATA HDD bay

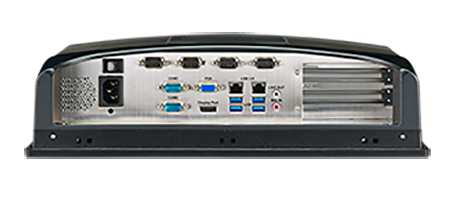

I/O
4 x Reserved ports (DB9) 2 x WLAN antenna holes
1 x AC inlet 1 x Power switch Reserved opening: According to the PPC-MB-8260AE/PPC-MB-610 motherboard specifications	1 x AC inlet 1 x Power switch 1 x DP (input, for connecting the motherboard and LVDS panel) 1 x USB 2.0 (input, for connecting the motherboard and touch controller) Reserved opening: According to the motherboard specifications
Expansion
1 x PCIe x4 or 2 x PCI (in the accessory box), 2 x PCIe x1 (optional), 1 x PCIe x1 + 1 x PCI (optional) 2 x PCIe x8 (optional, only for PPC-MB-610)	1 x PCIe x4 or 1 x PCI (in the accessory box)
Speaker
2 x 1 W	2 x 1 W (optional)
Fan
2 x 12V; 60 x 60 x 15 mm (2.36 x 2.36 x 0.59 in)
Physical Characteristics Dimensions (W x H x D)
391.4 x 312.5 x 103.6 mm (15.4 x 12.3 x 4.08 in)
Weight
5.03 kg (11.08 lb)
OS Support OS Support
According to motherboard specifications
Power Consumption Input Voltage
100 ~ 240 VAC, 250W
Power Consumption
SKL: 90W/KBL:120W (with PPC-MB-8260AE) CFL: 162W (with PPC-MB-610)
LCD Display Type
15" TFT LED panel
Resolution
Max. 1024 x 768
Viewing Angle
88 (left), 88 (right), 88 (up), 88 (down)
Luminance (cd/m2)
500
Contrast Ratio
2500
Backlight Lifetime
50,000 hr
Touchscreen Touch Type
5-wire analog resistive, with optional projected capacitive touch
Light Transmission
80+/-5%
Controller
USB interface
Durability
35 million touches
Environment Operating Temperature
0 ~ 50 °C (32 ~ 122 °F)(With 35W CPU) 0 ~ 45 °C (32 ~ 113 °F)(With 65W CPU) *** please refer to the PPC-MB-8260AE/ PPC-MB-610 CPU list	0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature
-30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity
10 ~ 95% @ 40 °C (non-condensing)
Shock
Operating: 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant
Vibration
Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant
EMC
BSMI,CE,FCC,Class A	CE,FCC,Class A
Safety
BSMI,CB,CCC,UL	CB,CCC,UL
Front Panel Protection
IP65 compliant
