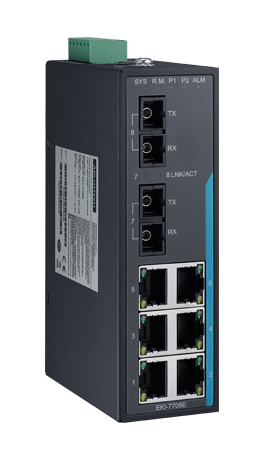

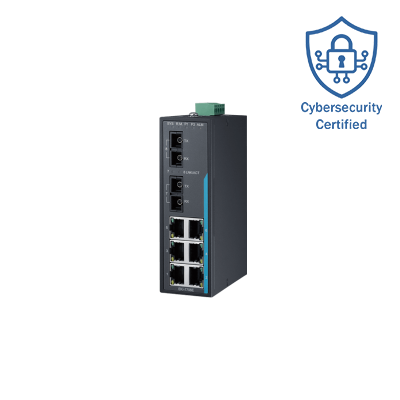

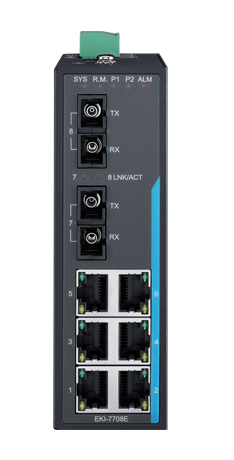

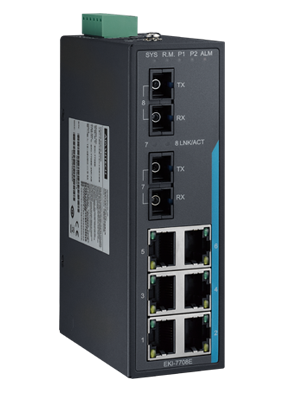

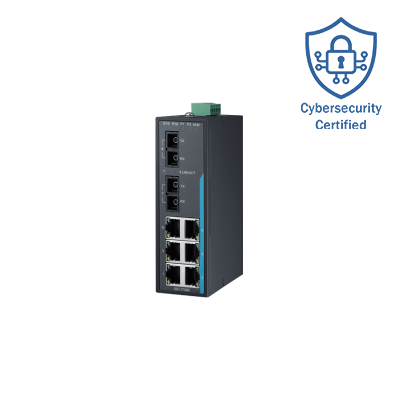

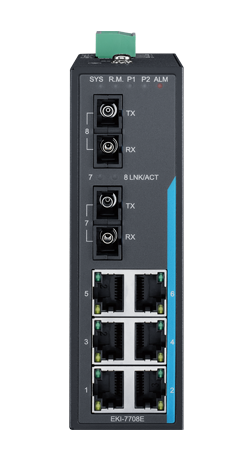

Advantech EKI-7708E-2SI / -2MI
6FE+2x100M Multi/Single-Mode SC Fiber Port Industrial Managed Ethernet Switch
Cechy
Prezentacja
Więcej informacji
Zobacz podobne produkty
Drukuj kartę produktu
Zamów ofertę
Twoja lista zapytań ofertowych
PDF
Cechy
Prezentacja
Więcej informacji
PDF
- Provides 6*FE ports with auto MDI/MDIX
- Provide 2x100M SC Single-mode 20km/ Multimode 2km ports
- Support 10/100Mbps auto negotiation
- Support jumbo frame transmission up to 10k
- Provide slim size, DIN-rail with IP30 metal mechanism
- Support redundant 12V~48V DC power input and P-fail relay
- Support RS-232 (RJ45) console
6FE+2x100M Multi/Single-Mode SC Fiber Port Industrial Managed Ethernet Switch
Specifiation
| Interfaces / Communications | |
|---|---|
| I/O Port | 10/100BASE-T/TX RJ-45 2 x 100M fiber SC type connector Auto-Negotiation, Full/Half Duplex Mode Auto MDI/MDI-X Connection |
| Standards | IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)/FX IEEE 802.3x for Flow Control |
| Transmission Distance | Ethernet: Up to 100 m (328 ft) Fiber: Multi-mode: Up to 2km (EKI-7708E-2MI) Single-mode: Up to 20km (EKI-7708E-2SI) |
| Console port | RS-232 (RJ45) |
| Power Connector | 6-pin Terminal Block (including relay) |
| Optical Fiber Multi-mode (EKI-7708E-2MI) Single-mode (EKI-7708E-2SI) |
Wavelength: 1310 nm Tx Power: -10/-18 dBm Rx Sensitivity: -30 dBm Wavelength: 1310 nm Tx Power: -3/-15 dBm Rx Sensitivity: -32 dBm |
| Physical | |
| Enclosure | Metal Shell |
| Protection Class | IP 30 |
| Installation | DIN-Rail |
| Dimensions (W x H x D) | 39 x 127 x 101 mm |
| LED Indicators | |
| System LED | P1, P2, P-Fail, SYS, R.M. |
| Port LED | Fiber: LNK/ACT Ethernet: LNK/ACT |
| Environment | |
| Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ambient Relative Humidity | 10-95% (non-condensing) |
| MTBF | Mean Time Between Failure > 1,000,000 hours@25 degree C |
| Power | |
| Power Consumption | 6.5W |
| Power Input | 12 ~ 48 V DC, redundant dual power input |
| Fault Output | 1 Relay Output |
| Certification | |
| Safety | ETL EN62368-1:2014 |
| EMI | CE, CISPR 32, FCC Part 15B Class A |
| EMS | EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 |
| EMC | EN 61000-6-2 EN 61000-6-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Vibration | IEC 60068-2-6 |
| Switch Properties | |
| Switching Capacity | 1.6 Gbps |
| MAC Table Size | 8K |
| Jumbo Frame | 1,0240 Bytes |
| Packet Buffer Size | 4.1Mb |
| Max. IGMP Group | 256 |
| Max. VLAN Group | 256 (VLAN ID 1 ~ 4094) |
| L2 Features | |
| VLAN Arrange | 802.1Q Tag-based VLAN, 802.1ad QinQ VLAN Stacking |
| Port Mirroring | 1 to 1, N to 1 Max. Mirror Session: 4 |
| RSPAN | Remote Switched Port Analysis |
| GARP | GVRP, GMRP |
| IP Multicast | IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave |
| Storm Control | Broadcast, Multicast, Unknown unicast |
| LLDP | 802.1ab LLDP, LLDP-MED |
| Industrial Protocol | Modbus/TCP |
| Redundancy | IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, X-Ring Pro, ERPS(G.8032) |
| QoS | |
| Priority Queue Scheduling | WRR (Weighted Round Robin), SP (Strict Scheduling Priority) Hybrid Priority, Max. Priority Queues: 8 |
| Class of Service | IEEE 802.1p Based CoS, IP TOS, DSCP based CoS |
| Rate Limiting | Ingress Rate limit, Egress Rate limit |
| Link Aggregation | IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking |
| Security | |
| Port Security | Static/Dynamic MAC, Max. Learning Limit, MAC Violation Notice |
| 802.1X | Port-based/MAC-based Authentication (MD5/PEAP/TLS/TTLS Encryption) |
| MAB | MAC Authentication Bypass |
| Authentication | RADIUS, TACAS+ |
| IP Security | IP Source Guard, DHCP Snooping, ARP Spoofing Prevention |
| ACL | Access Control List (IP-ACL, MAC-ACL) Max. ACL Entries: 128 |
| Management | |
| DHCP | Client, Server, Option66/67/82, DHCP Relay |
| Access | SNMP v1/v2c/v3, WEB, Telnet, RMON, Standard MIB-II, Private MIB, Ethernet-Like MIB, RMON MIB (Group 1, 2, 3, 9) |
| Security access | SSH2.0, SSL |
| Software upgrade | TFTP, SFTP, HTTP, Dual Image |
| NTP | SNTP client |
Ordering Information
| EKI-7708E-2MI | 6FE+2x 100M Multi-mode SC Fiber Managed Ethernet Switch with wide temperature operation |
| EKI-7708E-2SI | 6FE+2x 100M Single-mode SC Fiber Managed Ethernet Switch with wide temperature operation |
