ZPE Systems Nodegrid Bold SR

Services Router & Out-of-Band IT Infrastructure Management for Branch, Edge, & Colocation Network Devices

ZPE Systems Nodegrid Bold SR
  • CechyCechy
  • PrezentacjaPrezentacja
  • Więcej informacjiWięcej informacji
  • PDFPDF
  • Software Defined Networking, Network Function Virtualization and Docker capabilities
  • 2 x 4G/LTE with Dual SIM Slots for Redundant Network Failover (optional 4G/LTE USB modem support)
  • Out-of-Band Access Normalization, Control and Monitoring for EDGE devices
  • Routing and Switching Capabilities, VPN, IPSEC, and Firewall built-in
  • Horizontal & Vertical Scaling and Auto-discovery Configuration
  • Policy-based Authentication, Authorization and Auditing
  • Automatic Event Tracking and Actionable Data
  • Multi-port Hardware and Multi-vendor devices
  • Wi-Fi ready (via internal card or external USB) for hotspot or client
  • 4 x Gb Ethernet ports with:
  • Multiple Routing Table capability
  • Interface Bonding for Failover / Throughput
  • Bridge Mode for Cascading Network Devices

Empower all-in-one edge networking with a package that's smaller, lighter, & bolder

Whether you're in telecom, retail, or oil & gas, deploy the Bold SR for the functionality & control you need.

This lightweight box allows you to connect more than a dozen devices & add-ons, so you can deliver robust capabilities throughout your enterprise. The Bold SR puts you in charge with remote out-of-band management, Secure Access Service Edge, and SD-Branch capabilities.

  • Reduce CAPEX & virtualize your stack
  • Cut support costs & response times with remote out-of-band
  • Set up autonomous networking to prevent downtime



Nodegrid Bold SR TM (BSR) is an open platform appliance designed for secure access and control over remote devices at the edge of your network. BSR offers out-of-band management and supports virtualization, application hosting, and containerization via Docker, Kubernetes, and LXC. Minimize your stack for critical cost and space savings at edge locations.

Nodegrid Bold SR is fast, secure, versatile and reliable.Bold in features and capabilities, BSR supports a variety of connection methods: serial, network, and USB. You getin-band and out-of-band remote access, power control, sensors and IT device health monitoring, alert notifications,actionable data, network backup, and more!




Benefits
  • Reduce CAPEX & OPEX expenses with a consolidated, extensible solution & automated management
  • Reduce downtime & trips to remote locations with instant remote access
  • Minimize MTTR, downtime, & expenses with secure, centralized remote device access & control
  • Increase site reliability with open industry standard hardware & easy-to-use software


ProdGrafik

Specifiation


Hardware Specifications
CPU Intel x86_64 Multi-Core
Memory & Storage 4 GB of DDR3 DRAM, 32 GB SATA SSD

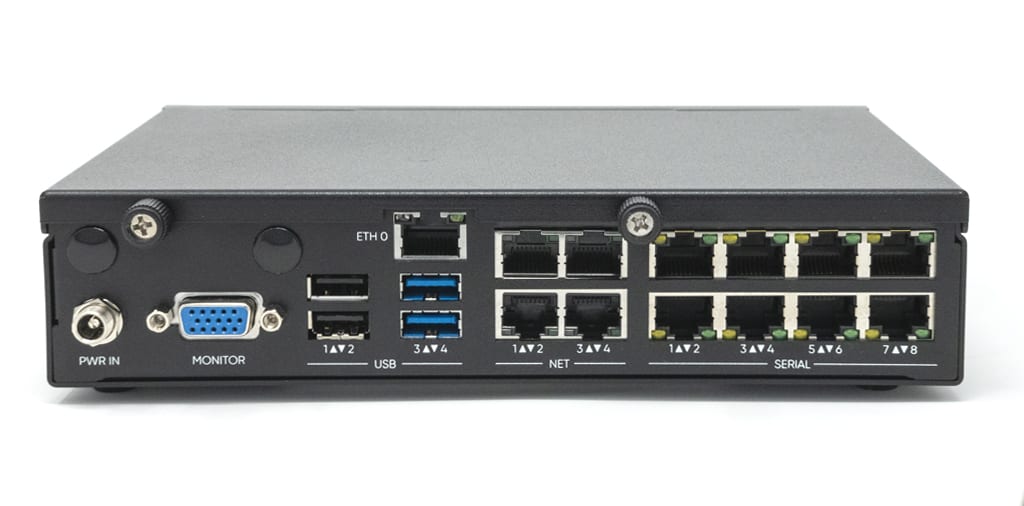

Interfaces 8 RJ45 Serial ports
1 RS-232 serial console port on RJ45
1 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
4 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
2 USB 3.0 Host on Type A
2 USB 2.0 Hosts on Type A
1 Wi-Fi - optional
2 Cellular Slots with Dual SIM - Optional
1 VGA port
Warranty 2 Years
Software Specifications
Port Access Direct access by port name, TCP port, device name and IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
1,000+ simultaneous sessions
Port sharing
Command line interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Nodegrid units
DeviceURL™ bookmarks, FireTrail™ secure tunnels
Break-over SSH support
System Management Extensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan
NTP support, global time zone support
SNMP
Access Protocols HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
Device View Options    Tree, Table, Geo Map, Node and WEB with NodeIQ™ natural language search
Security X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
SSL VPN - Client and Server
IPsec with support for multi sites
Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine grain and role based access control
Firewall - IP packet and security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum™
System event syslog
Custom security settings
Strong password enforcement
Operating System Built-in 64-bit Linux kernel 4.x and Yocto-based CustomKit™ SDK
Infrastructure Specifications
Power 12 VDC via external 100-240 VAC, 50/60 Hz adapter
Power consumption 25 W typical
Physical Front-Rear mounting brackets
Size (L x W x H): 142 x 201 x 44 mm (5.5 x 7.9 x 1.73 in)
Weight: 1.2 kg (2.6 lb)
Shipping weight: 2.3 kg (5.0 lb)
Shipping (L x W x H): 313 x 313 x 140 mm (12.3 x 12.3 x 5.5 in)
Environmental Operation: -20 to 50° C (-4 to 122° F), 20-90% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.






Ordering Information


Channel SKU Description CPU Memory Power Special
ZPE-BSR-24-Base ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty 2 Cores 4 GB AC Adaptor Base
ZPE-BSR-24-AM ZPE Nodegrid Bold SR 8x RJ45 Serial rolled, 5x GbE, 2-Core CPU, 4GB DDR3, 32GB SLC, Analog Modem. Single AC Power supply and cord included. 2 Cores 4 GB AC Adaptor Base
ZPE-BSR-24-DC-AM ZPE Nodegrid Bold SR 8x RJ45 Serial rolled, 5x GbE, 2-Core CPU, 4GB DDR3, 32GB SLC, Analog Modem. Single DC-in power supply included. 2 Cores 4 GB AC Adaptor Base
ZPE-BSR-24-W5 ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 2 Cores 4 GB AC Adaptor Wi-Fi
ZPE-BSR-24-4G ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12) Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 2 Cores 4 GB AC Adaptor 4G
ZPE-BSR-24-4G-W5 ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 2 Cores 4 GB AC Adaptor 4G,
Wi-Fi
ZPE-BSR-24-4G-W5-D128G ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 2-core Intel 64bit CPU, 4GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:128GB to host third-party applications. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-dayfree subscription. Includes Standard 2-Year Support & HW warranty. 2 Cores 4 GB AC Adaptor 4G,
Wi-Fi,
Second Storage
ZPE-BSR-48-Base ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 4 Cores 8 GB AC Adaptor Base
ZPE-BSR-48-W5 ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 4 Cores 8 GB AC Adaptor Wi-Fi
ZPE-BSR-48-4G ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 4 Cores 8 GB AC Adaptor 4G
ZPE-BSR-48-4G-W5 ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 4 Cores 8 GB AC Adaptor 4G,
Wi-Fi
ZPE-BSR-48-4G-W5-D128G ZPE Nodegrid Bold SR. 8X RJ45 Serial rolled, 5X GbE, 4-core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:128GB to host third-party applications. Single AC Power supply & cord included. Go to ZPEcloud.com to activate 90-day free subscription. Includes Standard 2-Year Support & HW warranty. 4 Cores 8 GB AC Adaptor 4G,
Wi-Fi,
Second Storage




Accessories


Accessory Description
AC Adaptor     Mini PCI Wi-Fi
M2-CELL M.2 Cellular 4G/LTE with Dual SIM
