ZPE Systems Nodegrid Serial Console - S Series

Serial Console Server

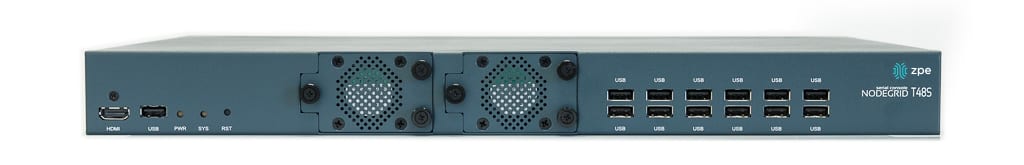

ZPE Systems Nodegrid Serial Console - S Series
  • CechyCechy
  • PrezentacjaPrezentacja
  • Więcej informacjiWięcej informacji
  • PDFPDF
  • Auto Switching (Cisco or Legacy Pin-out)
  • 16/32/48 Serial Ports
  • Additional USB ports
  • Upgradable CPU and RAM
  • Single AC, Dual AC and Dual DC

The Nodegrid Serial Console Switch makes it easy to control your mixed environments

Whether you're using legacy or Cisco-like pin-out devices, the S Series seamlessly blends in and keeps you connected to your solutions. Take advantage of auto-sensing ports, USB connectivity, and software development kit that give you custom control of any environment.



Features
  • Gen 3 Out-of-Band Management Integration
  • Extensible Applications with virtualization & containers
  • Centralized Configuration & Automation via Zero-Touch-Provisioning (ZTP)
  • Integrates with ZPE Cloud & Nodegrid Clustering Feature for a unified, vendor-neutral management solution
  • Modern x86_64bit Linux Kernel for fast security patching & widespread software availability
  • Extended Automation based on actionable data
  • Encrypted Data Transit with SSL, IPSec, & Wireguard VPN technologies
  • Built-In Firewall
  • Secure Selectable encrypted cryptographic protocols & cypher suite levels, configuration checksum™
  • Power Control & Monitoring Get alerts on IT device health & solve problems automatically
  • Automation & Orchestration Puppet, Chef, Ansible, RESTful APIs


Nodegrid Serial Console - S Series™ (NSC-S) is the data center's next generation of serial console server, providing built-in auto-switching capabilities and USB connectivity for next-gen IT solutions.

NSC-S is available in 16, 32, and 48 port configurations, each including 14 additional USB serial ports. NSC-S detects and reconfigures serial device pin-outs on-the-fly, eliminating the need for expensive dongles and cumbersome adapters.



Benefits
  • Reduce CAPEX & OPEX expenses with a consolidated, extensible solution with automated management
  • Reduce downtime & trips to remote locations with instant remote access
  • Minimize MTTR & downtime expenses with secure, centralized remote device access & control
  • Increase site reliability with openindustry-standard hardware &easy-to-use software


ProdGrafik

Specifications


Technical Specifications
Connectivity • Dual Gigabit Ethernet ports with Multiple Routing Tables
Managed Power Devices Vendor-neutral PDU support
Managed IPMI Devices OpenBMC, HP iLO, Dell iDRAC, Supermicro/Quanta IPMI, IPMI 2.0 compatible devices, Cisco CIMC/UCS, IBM IMM, Oracle ILOM,EMC/NetApp Storage IPMI
Sensors • IPv4 / IPv6 Support
• VLAN, Layer 3 Routing, BGP, OSFP, RIP, QoS, DHCP (Client & Server)
Networking Beispiel Text Inhalt mit padding, Lorem Ipsum 2
Port Access • Direct access by port name, TCP port, device name & IPv4/IPv6
• High performance port login: <1 sec on SSH, <3 sec on Telnet
• 250+ simultaneous sessions
• Port sharing
• Command Line Interface (CLI)
• Port custom field support, port icon configuration, port search
• Device clustering across multiple Nodegrid units
• Break-over SSH support
System Management • Extensible, automated control based on actionable real-time data
• Web GUI management portal, web console, Command Line Interface (CLI), Linux root shell, SNMP, RESTful API
• Zero Touch Provisioning (ZTP) via LAN/DHCP, WAN/ZPE Cloud, USB for configuration & firmware updates
• Multiple & customizable user levels of access
• Auto-discovery via network scan & custom probes
• SNMPv1,v2 & SNMPv3-v1 IPv4/IPv6 with MD5, SHA-224, SHA-256, SHA-384, SHA-512, DES, AES-192, AES-256
• Orchestration Integration & Automation: Puppet, Chef, Ansible, RESTful, ZPE Cloud & Nodegrid Cluster Feature
• File sharing via FTP, NFS, SSHFS, Windows Sharing, web file browser, ZPE Cloud
• Remote Procedure Call (RPC, gRPC)
• NetFlow, LLDP
Security • Hardened device with BIOS protection, TPM 2.0, UEFI Secure Boot, Signed OS, Self-Encrypted Disk (SED), Geofencing
• X.509 SSH certificate support, 4096-bit encryption keys
• Selectable cryptographic protocols for SSH & HTTPS (TLSv1.3,TLSv1.2, TLSv1.1, TLSv1)
• Selectable cypher suite levels: high, medium, low, custom
• IPsec, WireGuard, OpenSSL VPN with support for multi sites
• Local, AD/LDAP, RADIUS, TACACS+, Kerberos, authentication
• SAML 2.0 support via Duo, Okta, Ping Identity, ADFS
• Two-Factor Authentication with RSA & DUO
• Local, backup-user authentication support
• User-access lists per port
• Group/role-based authorization: AD/LDAP, RADIUS, TACACS+, SAML 2.0
• Fine grain & role-based access control
• Firewall: IP packet & security filtering, IP forwarding support
• MD5 / SHA System Configuration Checksum™
• System event logging to file, syslog, email, ZPE Cloud, Splunk & more
• Custom security settings
• Strong password enforcement
Access Protocols HTTPS, SSHv2; (Optional) HTTP, Telnet & SSHv1
Device View Options Tree, Table, Geo Map, Node, & WEB Interface with search
Data Logging & Notifications • Local port buffering: 20 MB per port
• Local, NFS, syslog, off-line data logging
• Time stamp & rotation for data logging
• Event destination: local, syslog, email, ZPE Cloud, Splunk & more
• Notification: syslog, email, ZPE Cloud, Splunk & more
Power Specifications • 40V-63 VDC dual power input (redundant)
• Power consumption 45 W typical
• Single or Dual AC: 100-240 VAC, 50/60 Hz
Operating System Built-in x86_64bit Nodegrid OS
Warranty 2-Year Limited Warranty
CPU & Storage
(Upgrades Available)   		 • Intel x86_64 dual core
• 4GB of DDR3 DRAM
• 32GB FLASH (mSATA SSD)
Interfaces • 16, 32, 48 RS-232 serial ports on RJ45 @ 230,400 bps max/port
• 14X USB serial ports on USB-A @921,600 bps max/port (ports can be used for other features as well)
• 2X Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 or 2 SFP+ 1/2.5/10GB compatible
• 1X RS-232 serial console port on RJ45
• 1X USB 3.0 Host & 13 USB 2.0 Hosts on Type A connector
• 1X HDMI output port
Physical • Front-Rear mounting brackets
• Size (L X W X H): 443 X 312 X 43 mm (17.4 X 12.3 X 1.7 in), 1U
• Weight: 4.9 kg (10.8 lb), depending on options
• Shipping Weight: 7.65 kg (17 lb)
• Shipping (L X W X H): 600 X 440 X 210 mm (23.6 X 17.3 X 8.3 in)
• Front-to-Back or Back-to-Front Fans (Swappable)
Environmental • Operation: 0 to 50° C (32 to 122° F), 5-95% RH, non-cond.
• Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond.
Safety UL 62368-1 (USA) CSA C22.2 No. 62368-1(Canada), EN 62368-1:2014 (2nd Edition) (EU), IEC62368-1, 2nd Edition, Rev. February 26, 2014 (International), CB, EAC/Customs Union (CU), KCC, BSMI, CCC





Ordering Information


SKU Description
Available 16 Port Configurations
NSC-T16S-STND-SAC-B NSC 16-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T16S-STND-SAC-B-SFP NSC 16-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T16S-STND-DAC-B NSC 16-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T16S-STND-DAC-B-SFP NSC 16-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T16S-STND-DDC-B NSC 16-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T16S-STND-DDC-B-SFP NSC 16-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
Available 32 Port Configurations
NSC-T32S-STND-SAC-B NSC 32-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T32S-STND-SAC-B-SFP NSC 32-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T32S-STND-DAC-B NSC 32-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T32S-STND-DAC-B-SFP NSC 32-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T32S-STND-DDC-B NSC 32-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T32S-STND-DDC-B-SFP NSC 32-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
Available 48 Port Configurations
NSC-T48S-STND-SAC-B NSC 48-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T48S-STND-SAC-B-SFP NSC 48-port unit, Auto-Switching pinout, Single AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T48S-STND-DAC-B NSC 48-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T48S-STND-DAC-B-SFP NSC 48-port unit, Auto-Switching pinout, Dual AC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
NSC-T48S-STND-DDC-B NSC 48-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD
NSC-T48S-STND-DDC-B-SFP    NSC 48-port unit, Auto-Switching pinout, Dual DC power supply, 2-Cores, 4GB RAM, 32GB SSD, SFP Fiber
