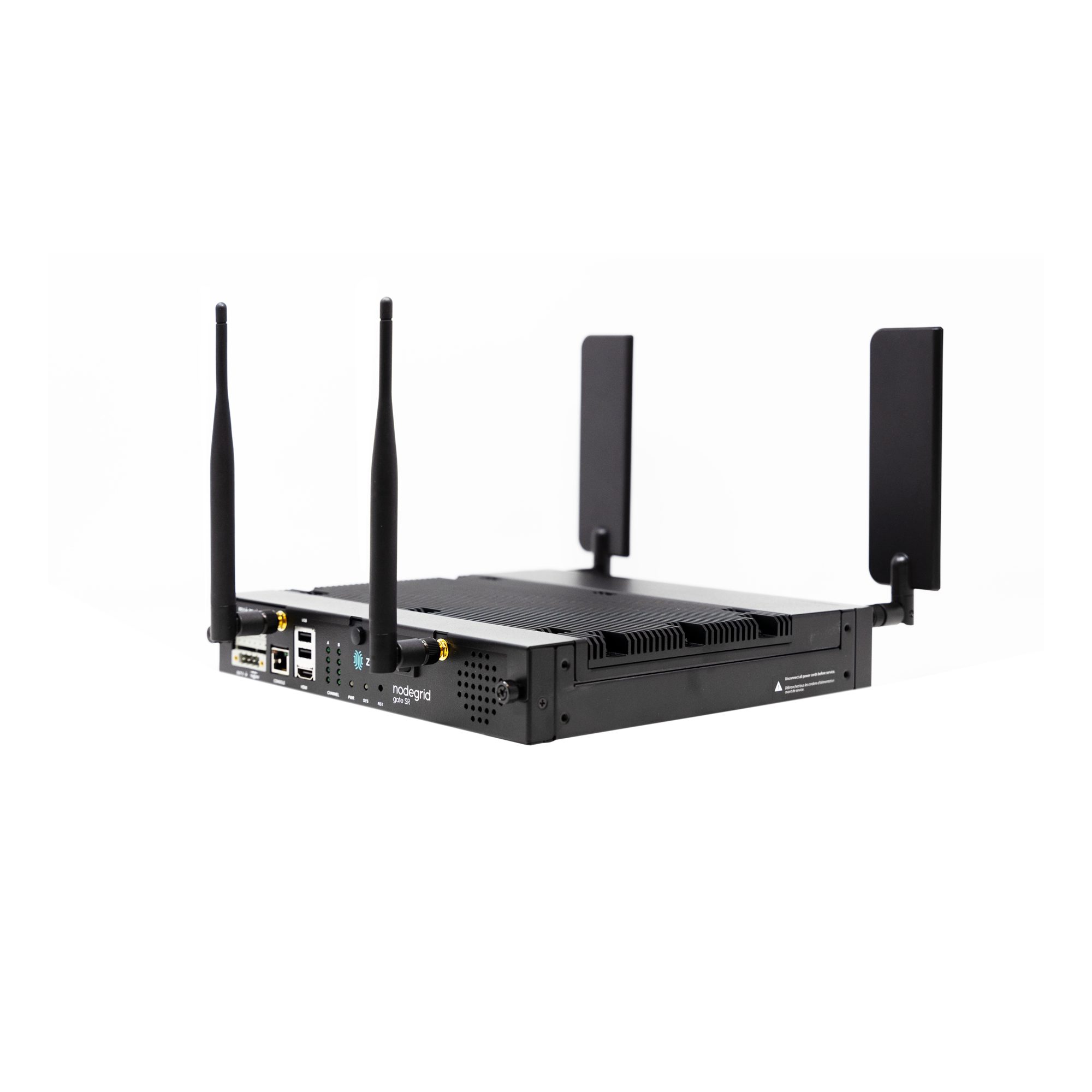

ZPE Systems Nodegrid Gate SR Series
Network Edge Routers
Cechy
Prezentacja
Więcej informacji
Zobacz podobne produkty
Drukuj kartę produktu
Zamów ofertę
Twoja lista zapytań ofertowych
PDF
Cechy
Prezentacja
Więcej informacji
PDF
- Secure, fast and consistent deployments across your branches with the ZPE Cloud
- Software Defined Networking, Network Function Virtualization, Guest OS, Kubernetes, and Docker capabilities
- Minimizes MTTR, downtime and expenses with secure, centralized remote device access & control
- Increases site reliability with open industry standard hardware, and easy-to-use software
- Zero Touch Provisioning (ZTP) for fast and easy setup in remote locations
- Integrates with ZPE Cloud and ZPE Systems Nodegrid Manager vendor-neutral, unified management solution
- Direct Linux shell, HTML5 cross-device web access and command line interface
- Modern 64-bit Linux Kernel for fast security patching and widespread software availability
- Kubernetes and Docker-optimized for quick, flexible script and application integration
- Extended Automation based on actionable real-time data
- Failover to 4G/LTE modem
- Gateway and multi-routing table capability
- SSL VPN and IPsec
- DHCP server - extra IPs for your remote site or replace your current router altogether
- Firewall - built in and turns on with a checkbox
- Secure - selectable encrypted cryptographic protocols and cypher suite levels, configuration checksum™
- Power control and monitoring - get alerts on suboptimal IT device health before malfunctions occur and solve problems automatically
- Orchestration - Puppet, Chef, Ansible, RESTful and ZPE Cloud
- Wi-Fi hotspot ready via internal card or add your AP (Access Point) via PoE+ port
- High density and flexibile interfaces for greater connectivity
If you need more capabilities at your NOC, or less mess at your branch offices, the Gate SR is the all-in-one solution you need. At your data center or remote locations, this workhorse connects you to dozens of physical assets while helping virtualize more of your network. Deploy fast, save time, and cut CAPEX & OPEX with the appliance that streamlines network management.
- Quickly set up all your solutions using one powerful box
- Get plug-n-play deployments with zero touch provisioning
- Virtualize more functions & cut your stack with an all-in-one device
Nodegrid Gate SR™ (GSR) delivers converged infrastructure for more flexible networking. Deploy anywhere on your network to boost your provisioning capabilities and set up virtualized environments. Use the extensible Nodegrid OS to integrate third party and custom solutions, while the GSR serves as your convenient management gateway to all your end devices. Streamline your workload ? from provisioning, to configuration, management, and beyond.
True Zero Touch Provisioning lets you automate deployments and configuration changes, including your connected end devices. Automate & create scripts to address issues before problems occur. This powerful solution also features the Gen 3 out-of-band you expect from Nodegrid®. Prevent downtime and instantly gain access to solutions and infrastructure ? from SD-WAN and firewall applications, to serial consoles, PDUs, and IPMI devices.
Benefits
- Reduce CAPEX & OPEX expenses with a consolidated, extensible solution & automated management
- Reduce downtime & trips to remote locations with instant remote access
- Minimize MTTR, downtime, & expenses with secure, centralized remote device access & control
- Increase site reliability with open industry standard hardware & easy-to-use software

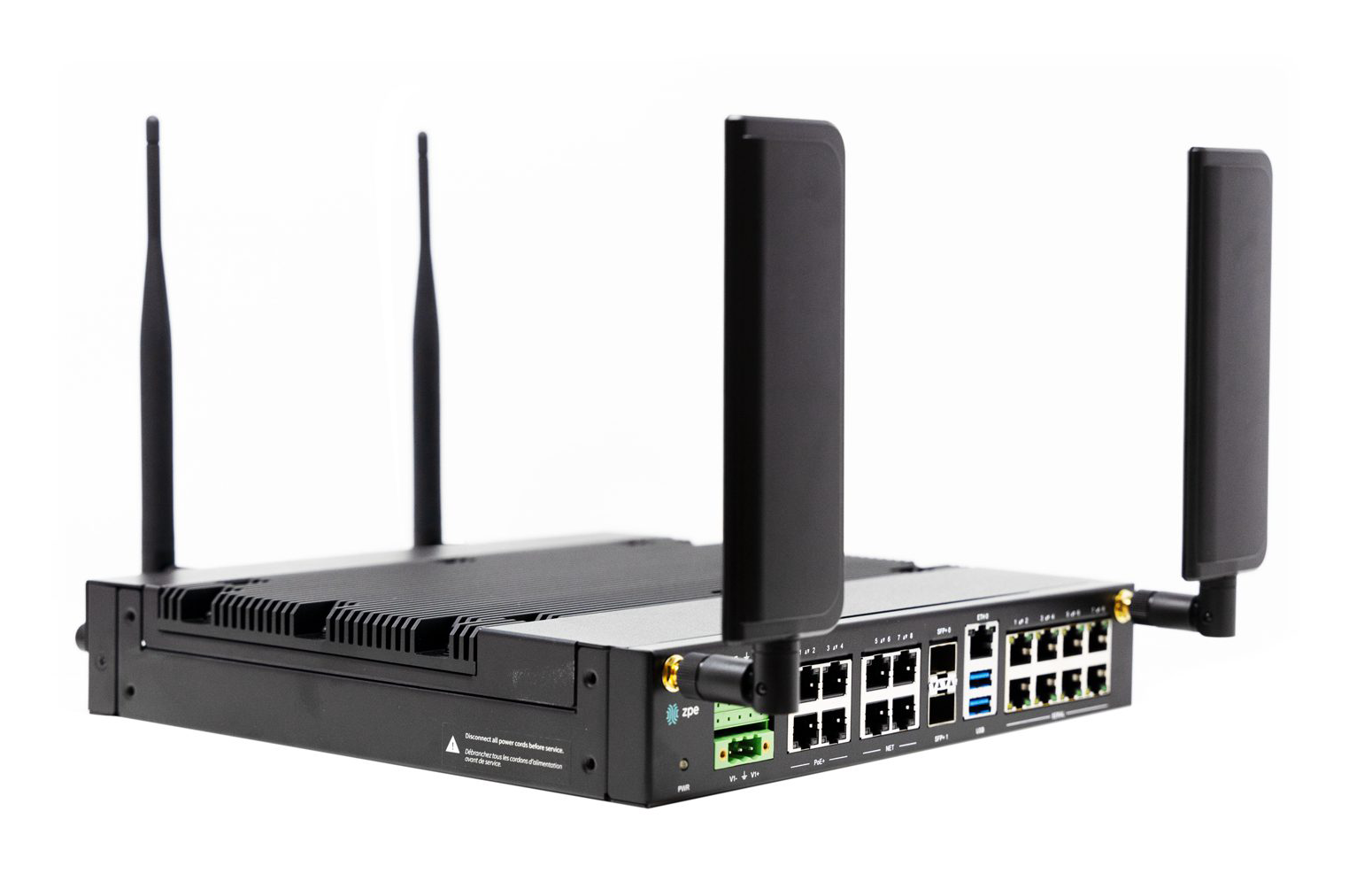

Nodegrid Gate SR Interfaces
9 x Gbit Ethernet (4 with PoE+)
8 x Serial RS-232 Ports
2 x SFP+ 1X Relay
2 x Digital IO 1X OUT
2 x Cellular 5G/4G/LTE 1X Wi-Fi 5
Specifiation
| Hardware Specifications | |
|---|---|
| CPU | • Multi-core Intel x86_64bit CPU |
| Memory & Storage | • 8-32GB of DDR4 DRAM, 32GB Hardware EncryptedSSD |
| Interfaces | • 8 x RJ45 Serial ports • 2 x SFP+ (10G) • 1 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 • 4 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch • 4 x PoE+ Gigabit (10/100/1000BT) Ethermet interfaces on RJ45 with Built-in Switch • 2 x GPIO Port • 1 x Digital Out Port • 1 x Relay Port • 2 x USB 3.0 Host on Type A • 2 x USB 2.0 Hosts on Type A • 1 x Wi-Fi - optional • 2 x Cellular Slots with Dual SIM - Optional • 1 x HDMI port |
| Software Specifications | |
| Port Access | • Direct access by port name, TCP port, device name and IPv4/IPv6 • High performance port login: <1 sec on SSH, <3 sec on Telnet • 1,000+ simultaneous sessions • Port sharing • Command line interface (CLI) • Port custom field support, port icon configuration, port search • Device clustering across multiple Nodegrid units • Break-over SSH support |
| System Management | • Extensible automated control based on actionable real-time data • Web GUI management portal, command line interface (CLI), Linux root shell • Zero Touch Provisioning for configuration and firmware updates • Multiple and customizable user levels of access • Auto-discovery via network scan • NTP support, global time zone support • SNMP • Orchestration Integration: Puppet, Chef, Ansible, RESTful, ZPE Cloud, and Nodegrid Manager |
| Access Protocols | • HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet |
| Device View Options | • Tree, Table, Geo Map, Node and WEB with search capability • Integrates with ZPE Cloud |
| Security | • X.509 SSH certificate support, 4096-bit encryption keys • Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1) • Selectable cypher suite levels: high, medium, low, custom • SSL VPN - Client and Server • IPsec with support for multi sites • Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication • Local, backup-user authentication support • User-access lists per port • Group/role-based authorization: AD/LDAP, RADIUS, TACACS+ • Fine grain and role based access control • Firewall - IP packet and security filtering, IP forwarding support • MD5 / SHA System Configuration Checksum™ • System event syslog and data logs • Custom security settings • Strong password enforcement |
| Operating System | • Built-in 64-bit Linux kernel (Nodegrid OS) |
| Infrastructure Specifications | |
| Power | • 36V-75 VDC dual power input (redundant) • Power consumption 45W typical • AC Power adapter (add-on), 100-240V~, 1.2A, 50-60Hz, Operating temperature: -25 to 60° C |
| Physical | • Front-Rear mounting brackets • Size (L x W x H): 241.3 x 260.35 x 44.45 mm (9.5 x 10.25 x 1.75 in) • Weight: .9 kg (2 lb) • Shipping weight: 3.6 kg (8.0 lb) • Shipping (L x W x H): 349.25 x 374.65 x 177.8mm (13.75 x 14.75 x 7 in) |
| Environmental | • Operation: -20 to 60° C (-4 to 140° F), 5-95% RH, non-cond. • Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond. |
Ordering Information
| Channel SKU | Description | CPU | Memory | Power | Special |
|---|---|---|---|---|---|
| ZPE-GSR-48-Base-F | ZPE Systems Nodegrid Gate SR -8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, with Fan. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 4 Cores | 8 GB | AC & DC | Base |
| ZPE-GSR-48-W5-F | ZPE Systems Nodegrid Gate SR - 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), with Fan. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 4 Cores | 8 GB | AC & DC | Wi-Fi |
| ZPE-GSR-48-4G-F | ZPE Systems Nodegrid Gate SR -8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), with Fan. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 4 Cores | 8 GB | AC & DC | 4G |
| ZPE-GSR-48-4G-W5-F | ZPE Systems Nodegrid Gate SR -8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), with Fan. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 4 Cores | 8 GB | AC & DC | 4G, Wi-Fi |
| ZPE-GSR-48-4G-W5-D128G-F | ZPE Systems Nodegrid Gate SR -8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 4-Core Intel 64bit CPU, 8GB DDR4, 32GB SLC, 4G LTE (CAT12), with Fan. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 4 Cores | 8 GB | AC & DC | 4G, Wi-Fi, Second Storage |
| ZPE-GSR-816-Base | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 13X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC. Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support & HW warranty. Includes 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | Base |
| ZPE-GSR-816-W5 | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac). Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | Wi-Fi |
| ZPE-GSR-816-4G | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12). Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | 4G |
| ZPE-GSR-816-4G-W5 | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 02.11ac). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | 4G, Wi-Fi |
| ZPE-GSR-816-4G-W5-D128G | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 4G LTE (CAT12), Wi-Fi 5 (866Mbps 2X2 dual stream 802.11ac), Disk2:1216GB. Dual DC input (wide range DC). AC power adapter not included, order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | 4G, Wi-Fi, Second Storage |
| ZPE-GSR-816-5G | ZPE Nodegrid Gate SR. 8X RJ45 Serial rolled, 11X ETH, (5 GbE, 4X PoE+, 2 SFP+), 8-Core Intel 64bit CPU, 16GB DDR4, 32GB SLC, 5G LTE (Sub 6 with 4G/LTE CAT20). Dual DC input (wide range DC). AC power adapter not included. Order ZPE-GSR-PSU separately. Order ZPE Cloud & app subscription. Includes Standard 2-Year Support, HW warranty, & 90-day ZPECloud.com subscription. | 8 Cores | 16 GB | AC & DC | 5G |
