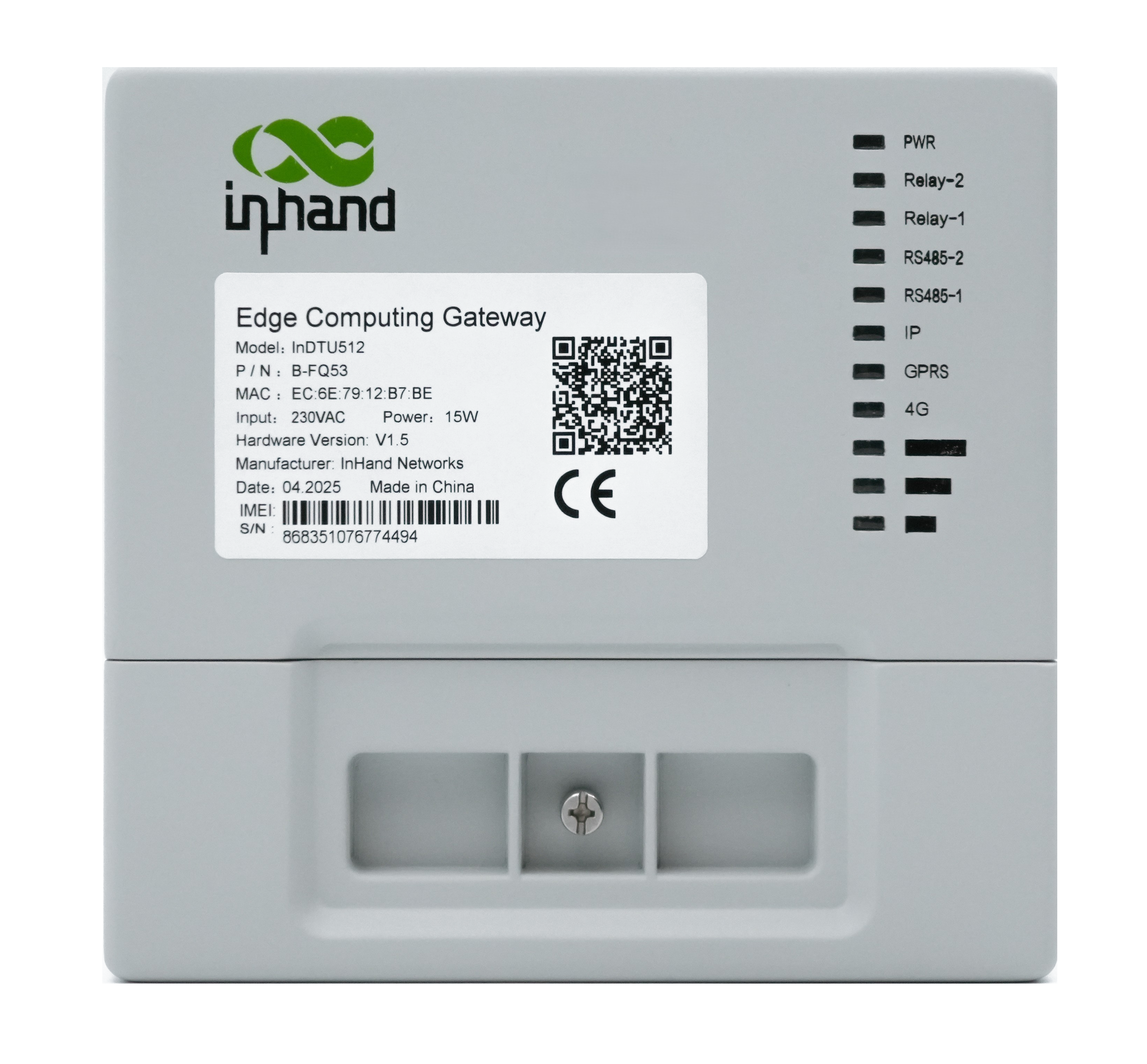

InHand Networks InDTU512

wireless data terminal

InHand Networks InDTU512
  • PrezentacjaPrezentacja
  • Więcej informacjiWięcej informacji

InDTU512 is a wireless data terminal designed according to the requirements of the Automatic Meter Reading System (OSOS) for communication via cellular networks, which can be referred to as the OSOS Modem. InDTU512 enables the master station to access the connected metering devices via the internet, allowing the master station to obtain the operational parameters of the meters at any time and record detailed data.

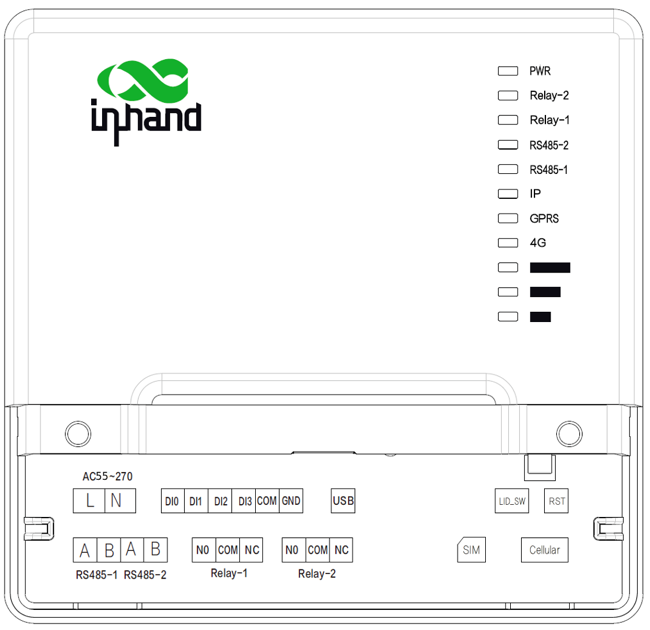

InDTU512 enables the master station to access the connected metering devices via the internet, allowing the master station to obtain the operational parameters of the meters at any time and record detailed traceability information. equipped with various hardware interfaces such as Ethernet port, serial port, digital input, relay output, etc., enabling it to connect to various devices on-site and achieve multiple applications.



Packing list


Standard Accessories

Name Quantity Note
Wireless Data Terminal 1 InDTU512
Antenna 1 1 x Cellular Antenna
Wiring Terminal 1 Industrial terminals for access to power, serial, IO, relays



Optional Accessories

Name Quantity Note
Power adapter 1 10A 250VAC

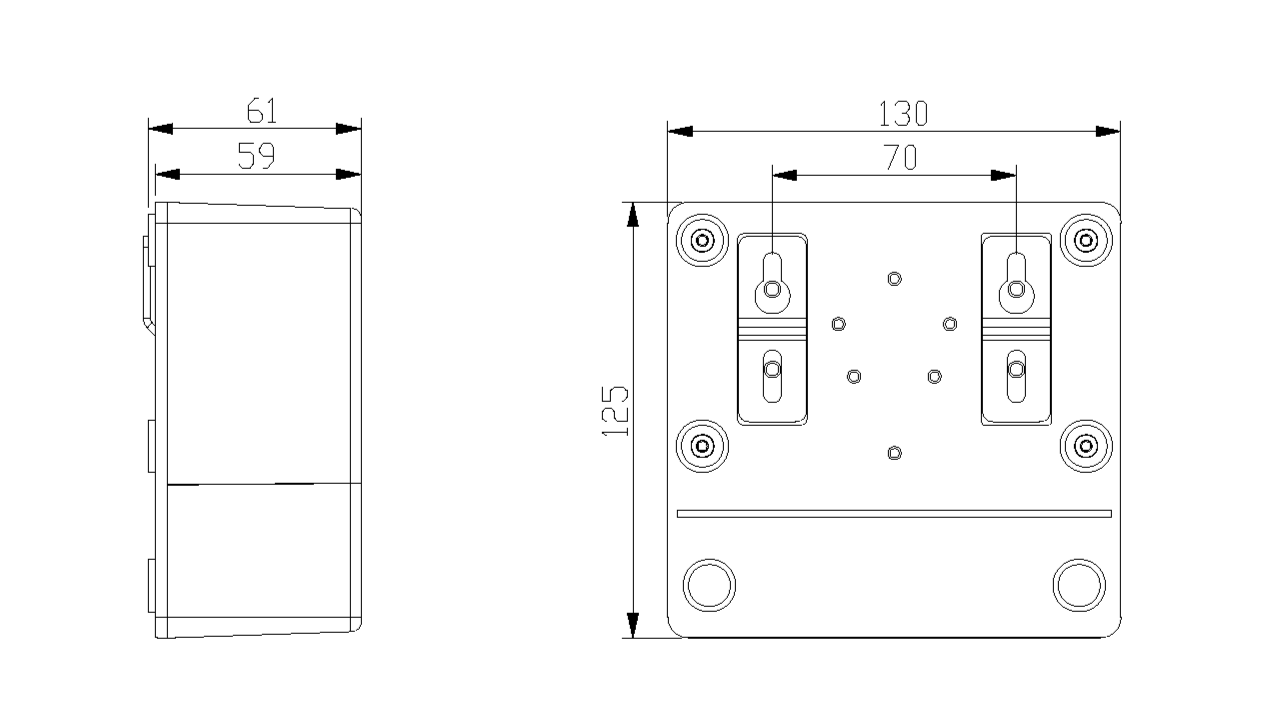

Wall Mount Kit 1 DTU512 supports both DIN-rail mounting and wall mounting,
depending on the actual deployment mode on site.
